Description and working principles of the ceramic wear plate and cutting ring
With the increase strength of the concrete material and height pumping pressure, the working conditions of the boom pump .
The wear plate (also known as glass plate) is an essential part between the S vale tube and the cutting ring, which was driven by the swing cylinder to swing from one side to another side of the concrete port. As the S vale works, the wear plate and cutting ring were tightly attached together which forms a cutting friction with the spectacle plate. Due to the rapid swing of the cutting ring, the wear plate and the concrete material will contributes to a strong friction. The wear plate also has to. That’s to say, the glass plate must have to withstand the impact force generated by the cutting of stones also the shearing forces of strong friction at the same time.
The characteristics of the ceramic wear plate and cutting ring
1. The superior abrasion-resistant ceramics were applied on the working surface of the wear plate and cutting ring by strong shearing-force adhesive, this new material is more cost-effective than cemented carbide and they are of high hardness and good toughness.
2. The pumping capacity of the ceramic wear plate and cutting ring is higher than that of the alloy material. Usually it is 40,000 cubic meters for the ceramic wear plate and 20,000 cubic meters for the cutting ring.
3. With a smoother surface like a mirror, the ceramic wear plate and cutting ring will of lower friction and shearing force, which will greatly increasing the service life and easy for installation.

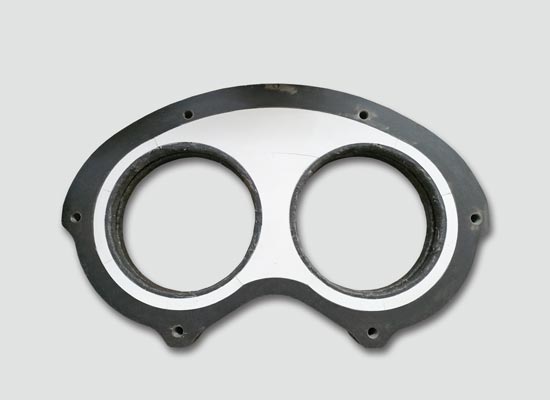

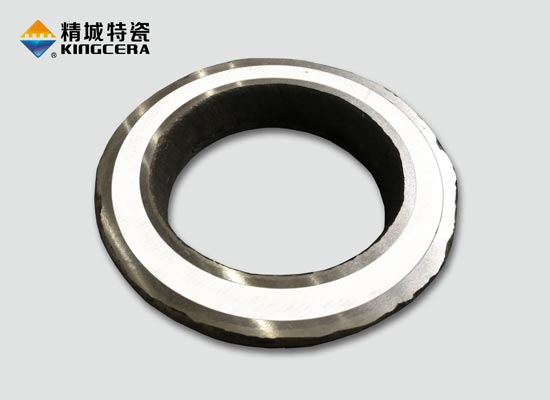

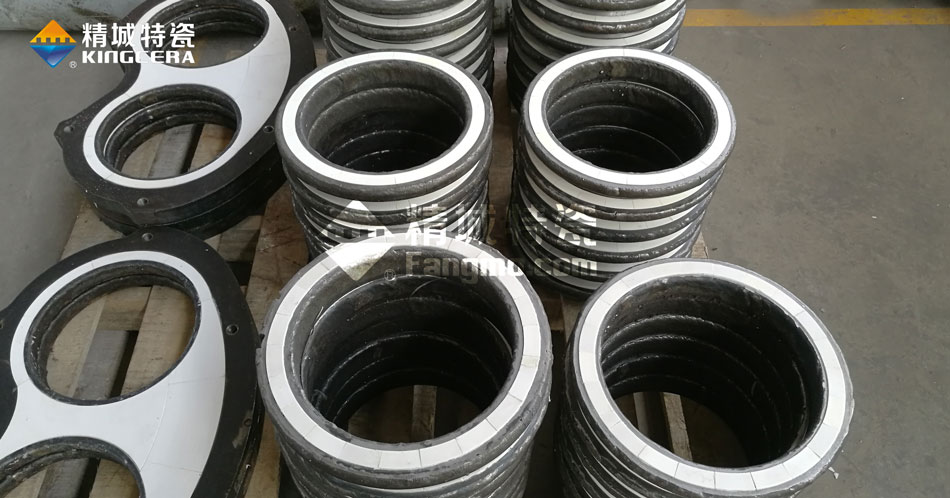

Abrasion resistant ceramic wear plate and cutting ring

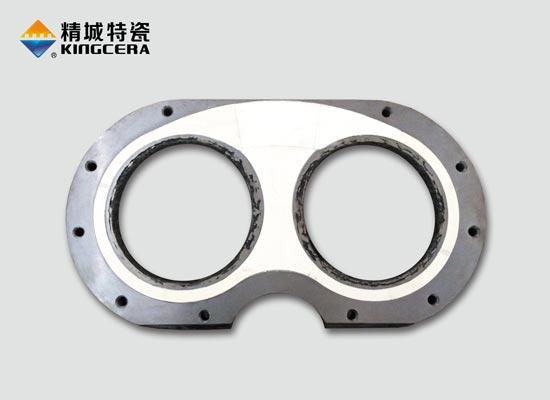

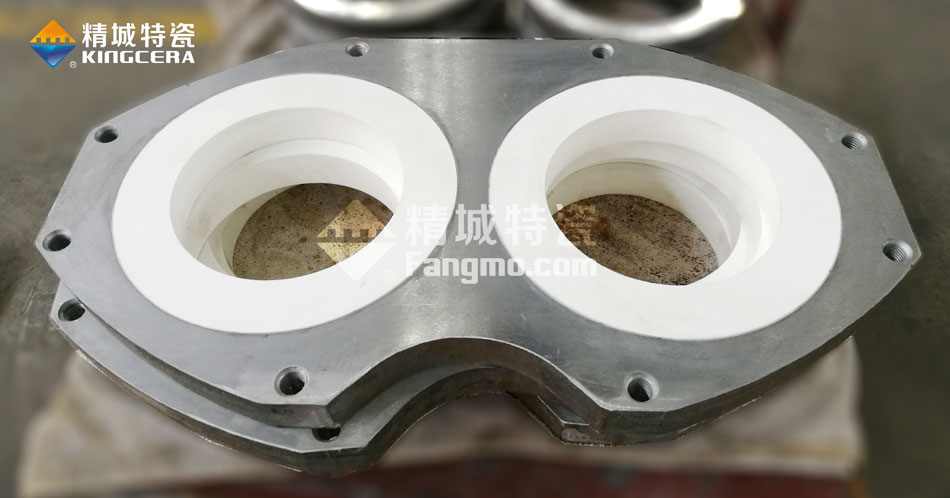

Abrasion resistant ceramic wear plate

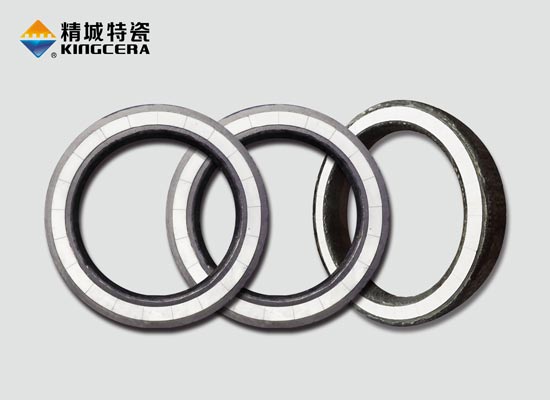

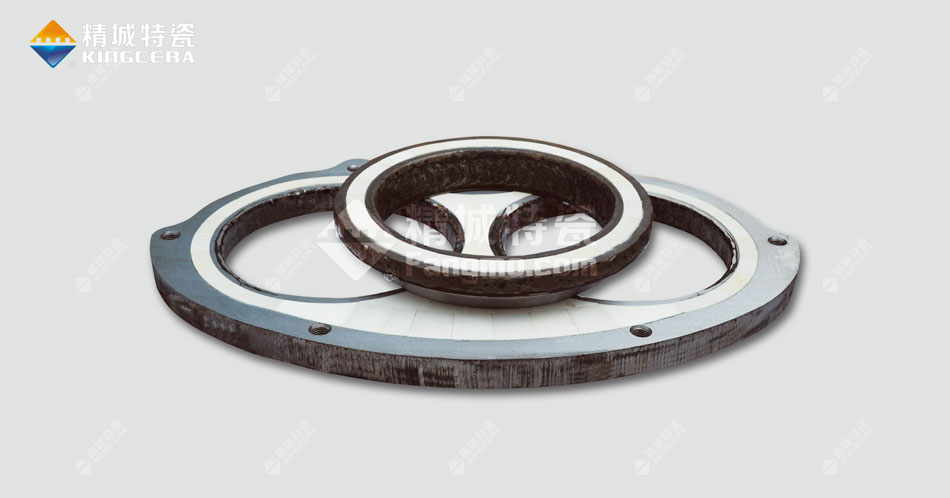

Abrasion resistant ceramic wear plate and cutting ring
